Brand Name : RanCheng
Model Number : RCF180S
Certification : CE, ISO 9001:2000
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100sets per Month
Delivery Time : 10-15 working days
Packaging Details : It can be shipped by one 20" container
Name : RCF180S
Drilling Depth : 180m
Once-time advance length : 90-300mm
Rotary Speed : 45-65r/min
Diesel Engine : 77.3KW Yuchai engine
Max torque of rotary : 4000-4600Nm
RCF180S mini water drilling machine is very powerful ,it can drill max 180m depth , this small water : 76/89mm
High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine
Machine Description
This revolutionary small water drill subverts traditional cognition with its breakthrough design:
Equipped with Yuchai's efficient power core, it perfectly combines 77.3 kW of powerful power with 4,600 Nm of amazing torque
180-meter ultra-deep drilling capability, easily cope with various complex geological challenges
The original 15-ton lifting system with modular 2-meter drill rods enables extremely fast replacement at the construction site
The RCF180S demonstrates the operating capabilities of large equipment in a small space, and reinterprets the true meaning of "small size and big energy" with intelligent engineering design. Whether it is urban infrastructure or field exploration, it can become the most reliable partner of your engineering team with its excellent stability and operating efficiency.
We sincerely invite all engineering experts to experience this epoch-making drilling solution in person, and let us witness the new benchmark of small drilling rig technology together!
Technical Parameters
Bore diameter(hammer) | 90-300mm |
Bore depth | 180m |
Air consumption | 17-31m³/min |
Air pressure | 1.7-2.5Mpa |
Once-time advance length | 2.4m |
Pipe diameter | 76mm/89mm |
Pipe length | 2m |
Push force | 4T |
Lifting force | 15T |
Max torque of rotary | 4000-4600Nm |
Rotary speed | 45-65r/min |
Mud Pump flow | 200L/min (option) |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 2300×1200×1900mm |
weight | 2700kg |
Diesel engine | 77.3KW Yuchai engine |
Feature:
1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.
2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.
3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.
4,it is rubber crawler mounted type ,easy to move.
5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.

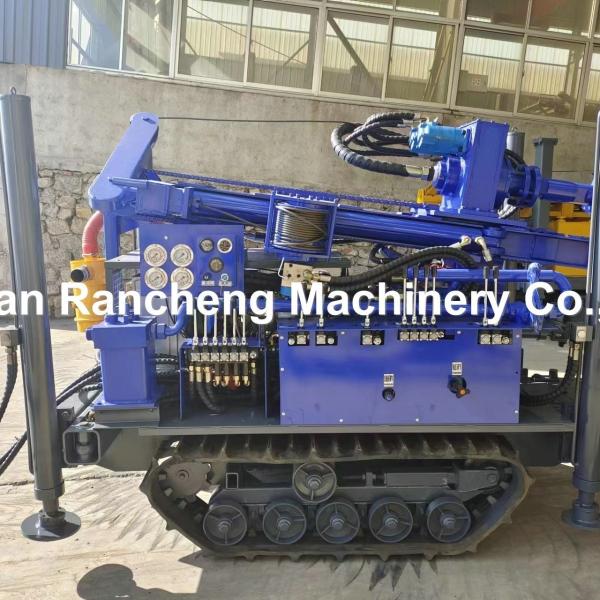

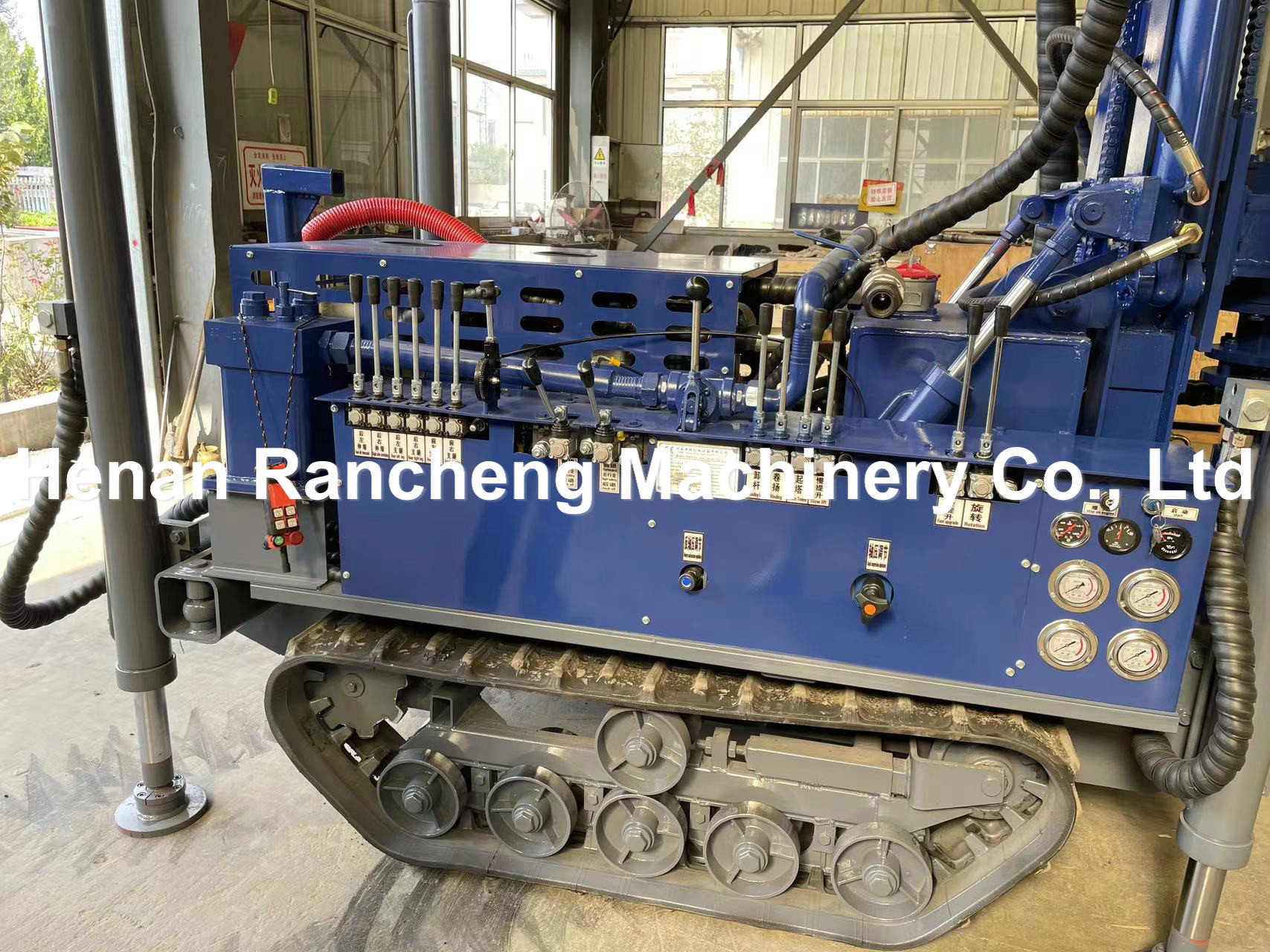

Image Display
![]() |
High-performance Yuchai 180m Bore Depth RCF180S Mini Water Well Drilling Machine Images |
