High-Quality Solar Pile Driver With 6m Frame Post Crawler Ramming Machine
Product Description
The RCH530D bored piling rig designed high efficiency hydraulic system adoptsvariable plunger pump and variable plunger motor of Rexroth series imported.The operating system adopts the original customized manual multi-way directional valve imported,which has the advantages of accurate operation and high system efficiency.
With the addition of gearbox,the torque is larger,and the speed can also be continuously changed ,the speed range is wider,suitable for all kinds of complex strata. Hydraulic Trojan horse gripper,patented product.Clamping drill pipe without being loosen,with high safety factor
Product Specifications
| Model | RCH530D |
| Transportation size (L*W*H) | 6500mm*2200mm*2700mm |
| Working Size (L*W*H) | 3500mm*2200mm*7500mm |
| Crawler Size | 2550mm*1700mm*530mm |
| Vehicle Weight | 4500-5200KG |
| Diesel Engine Rated Power | 70KW |
| Flow Rate of Hydraulic System | 113.4L/Min |
| Hydraulic Pressure(Max) | 20Mpa |
| Mast Stroke | 200-5500 |
| Hydraulic Hammer | YC360 (85MM borehole rod) |
| Impact | 1300J |
| Piling efficiency | 3200mm/Min |
| Drilling Depth(Max) | 3500mm |
| Borehole Diameter | 50-300mm |
| Climbing Ability(Max) | 30° |
| Speed | 3.8KM/H |
| Left/Right Sliding Stroke(Max) | 500mm |
| Max Inclination Angle of Sliding Guide Frame | Left 30°/Right 8° |
| Front / Rear Adjusting angle of frame | Front 75°/ Rear 15° |
| Min Ground Clearance | 230mm |
| Capacity of Hydraulic Oil Tank | 80L |
| Capacity of Diesel Tank | 80L |
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
>>Corporate culture
Concept: based on geological drilling to help China's develop-ment.
Vision:to be a leader in geological prospecting machinery.
Make outstanding contributions to the cause of geological explo-rationin China.
Corevalue:Patriotism Integrity Dedicated
Enterpriseprinciple:Contributing to the society Peopleoriented Constantlystrive for perfection Win-wincooperation.

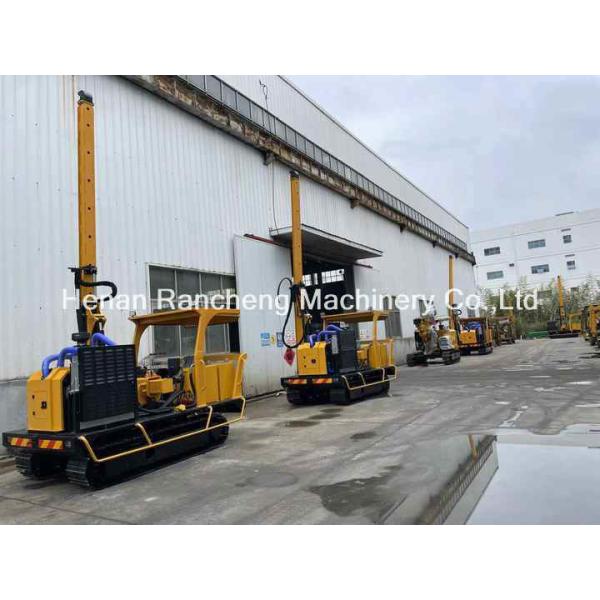

Product Image
